| Minimum Order Quantity : | 5 | Price : | USD10000 |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | L/C, T/T, Western Union,Paypal | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | GP9111C 6 - 15KVA |
|
Detail Information |
|||
| Rated Frequency: | 50/60HZ | Frequency Range: | 50/60HZ±10% |
|---|---|---|---|
| Soft Strat: | 0-100% 5sec | Power Factor: | 0.8(lagging) |
| Frequency Accuracy: | 50/60Hz±0.05Hz(battery Power) | Alarm: | Sound And Light Alarm |
| Noise: | 60-65dB | Operating: | Temperature:0-40℃ Relative Humidity :0-90% |
| Nominal Voltage: | 220/230/240VAC&380/400/415VAC | ||
| Highlight: | pure sine wave ups,remote control ups |
||
Product Description

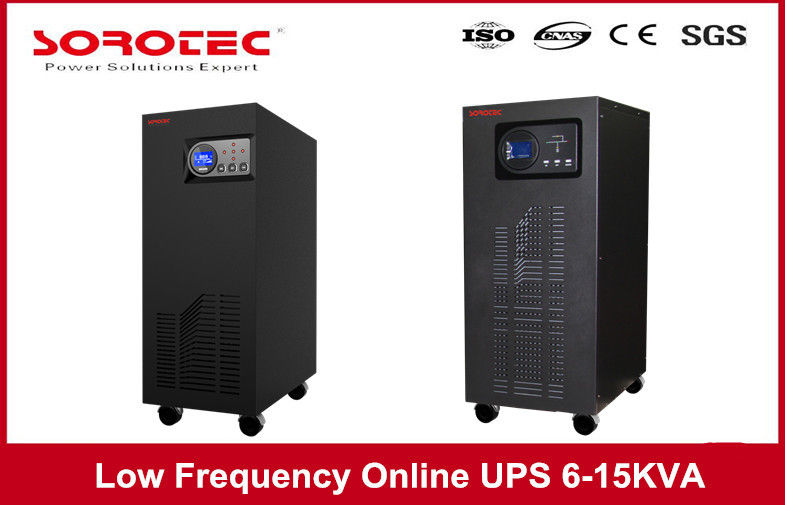

6-15 kVA UPS Power System IGBT PWM Build in Low Frequency Online UPS
Applications:
IDC data exchange center medium-sized rooms, medium-scale network management systems, billing center, banking / securities clearing centers, industrial process control, traffic control areas.
Key Features:
1.Intelligent battery management, extending the battery life.
2.Suitable for all kinds of loads, and a high overload capacity.
3.Large LCD display in Chinese and English human-machine interface.
4.1ph in/1ph out or 3ph in/1ph out, support 380/400/415V, 50/60Hz power system.
5. Pure-online double conversion technology, to provide the best quality of power supply.
Technical Specifications of Online UPS GP9111C GP9311C Series:
| Model | GP9111C 6-15KVA | GP9311C10-40KVA | |||||||||||||||
| 6KVA | 8KVA | 10KVA | 15KVA | 10KVA | 15KVA | 20KVA | 30KVA | 40KA | |||||||||
| Capacity |
6KVA/ 4.8KW |
8KVA /6.4KW |
10KVA /8KW |
15KVA /12KW |
10KVA /8KW |
15KVA /12KW |
20KVA /16KW |
30KVA /24KW |
40KA /32KW |
||||||||
| Rated voltage | 220V single phase | 380V three phase 4 wires+G | |||||||||||||||
| Rated frequency | 50/60HZ | ||||||||||||||||
| AC input | |||||||||||||||||
| Voltage range | 220V±25% single phase | 380V±25% three phase 4 wires + G | |||||||||||||||
| Frequency range | 50/60HZ±5% | ||||||||||||||||
| Soft strat | 0-100% 5sec | ||||||||||||||||
| Power factor | ＞0.92(with input filter) | ||||||||||||||||
| Bypass input | |||||||||||||||||
| Voltage range | 220V±25% single phase | 380V±25% three phase 4 wires + G | |||||||||||||||
| Frequency range | 50/60HZ±10% | ||||||||||||||||
| Inverter bypass | (overload)0ms | ||||||||||||||||
| Output | |||||||||||||||||
| Voltage accuracy | 220V±1%(steady-state load), 220V±3%(load fluctuations) | ||||||||||||||||
| Frequency accuracy | 50/60Hz±0.05Hz(battery power) | ||||||||||||||||
| Power factor | 0.8(lagging) | ||||||||||||||||
| Distortion | <3%(linear load), <5%(non linear load) | ||||||||||||||||
| Steady-state response time | <10ms | ||||||||||||||||
| Overload capacity | 110%load can run normally；125％10min；150％1min； | ||||||||||||||||
| battery | |||||||||||||||||
| Nominal voltage | 192V | 360V | |||||||||||||||
| Float voltage | 216V | 405V | |||||||||||||||
| Cut-off voltage | 168V | 315V | |||||||||||||||
| Charger current | 1A-50A(According to the battery capacity can be set configuration) | ||||||||||||||||
| Other | |||||||||||||||||
| Display | LEDLCD | ||||||||||||||||
| Alarm | Sound and light alarm | ||||||||||||||||
| Protection | UPS over current, short circuit, under voltage, over temperature | ||||||||||||||||
| Environment | |||||||||||||||||
| Noise | 60-65dB | ||||||||||||||||
| Operating | Temperature:0-40℃ Relative humidity :0-90% | ||||||||||||||||
| Box color | Gray (optional) | ||||||||||||||||
| Physical | |||||||||||||||||
| Wight (KG) |
Net | 122 | 125 | 143 | 175 | 182.5 | 235.5 | 285.5 | 354.8 | 354.8 | |||||||
| Gross | 142 | 147 | 163 | 199 | 225.5 | 268.5 | 325.2 | 389.5 | 389.5 | ||||||||
|
Dimensions: W×D×Hmm) |
210×600×560 | 305×586×850 | 350×675×920 | 430×792×1060 | |||||||||||||
Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
