Modular UPS-High Frequency Online Uninterrupted Power Supply MPS9335C Ⅱ 50-720KVA
Contact Person : Ella
Phone Number : 0755-81495850
WhatsApp : +8613682556888
| Minimum Order Quantity : | 1PCS (Sample are Available) | Price : | Negotiable Price |
|---|---|---|---|
| Packaging Details : | Standard Exported Cartons and Pallets for Modular UPS | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms : | 30% TT in advance, the balance before shipping | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
| Place of Origin: | China | Brand Name: | SOROTEC |
|---|---|---|---|
| Certification: | CE,ROHS,ISO9000 | Model Number: | MPS9335C 10 - 300KVA |
|
Detail Information |
|||
| Product Name: | SOROTEC Modular UPS | Model: | MPS9335C Series |
|---|---|---|---|
| Capacity: | 10-300KVA | Phase: | 3Phase |
| Application: | Industry/Telecom | OEM Produce: | Allowed |
| Certification: | CE | ||
| Highlight: | remote control ups,ups battery cabinet |
||
Product Description

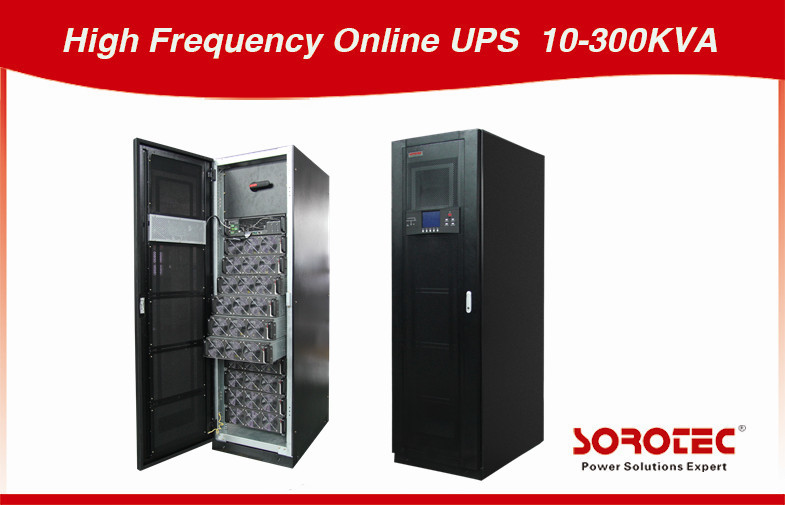

SOROTEC Modular UPS 3Phase MPS9335C 10-300KVA for Data Center / Telecom / Servers
MPS9335C Series Modular UPS 10-300KVA
Support 4 units UPS for parallel working/Output power factor is 0.9/3Ph in and 3Ph out/Online capacity expansion and maintenance/Extra LCD display 13 type languages/Extra wide input voltage and frequency ranges/widely used to provide reliable and long time backup power supply for IDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Key Features:
1. input THDi<3%,Efficiency > 96% at 50%-75% rated load,
2.Easy-to-install,Easy-to-maintain,Easy-to-modify
3. 6-inch extra large LCD that can display 13 language
4.Provide large LCD touch screen (optional)
5.Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
6.On-Line Double Conversion, fully isolating the influences of power grid pollution
7.Advanced DSP full digital control technologies
8.Advanced distributed active parallel technology realizes parallel operation of 4 UPS units
Technical Specifications of Modular UPS, MPS9335 10-300KVA:
|
Model |
MPS9335 10-300KVA | ||
| Capacity | 10-300KVA | ||
| Main input | |||
| Input voltage | 380V/400V/415AC(Optional South America 208v) | ||
| Input Frequency Range | 50/60Hz | ||
| Power Factor | Full load>0.99 ,Half load >0. 98 | ||
| THDi | THDi <3% | ||
| Input power soft-start fantion | 5-30s settable | ||
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% | ||
| Frequency Range | 40-70Hz | ||
| Battery | |||
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose | ||
| Charge Voltage accuracy | ± 1% | ||
| Bypass | |||
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software | ||
| Overload Capacity | 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms | ||
| Output | |||
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire | ||
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) | ||
| THDi | THD<1%(linear load), THD<3%(nonlinear load) | ||
| Power Factor | 0.9 | ||
| Three Phase Angle accuracy | 120°c ± 0.5°c | ||
| Current Crest Ratio | 3:1 | ||
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms | ||
| Transfer Time | 0ms,15ms(ECO Mode) | ||
| System | |||
| Frequency | 50Hz/60Hz (Settable) | ||
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz | ||
| Protection Level | IP20 | ||
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port | ||
| System efficiency | > 96% at load above 50%, >95% at load above 25% | ||
| Operation Temperature | 0-40 °c | ||
| Storage Temperature | -25 °c -70 °c (without battery) | ||
| Humidity | 0-95%(no-condensing) | ||
| Noise(dB) | 55-62dB,Adjusted with load | ||
| 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG | |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG | |
| module :PM10 | 10KVA power module :20KG | ||
| Weight | module :PM20 | 20KVA power module :21KG | |
| module :PM30 | 30KVA power module :32KG | ||
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 | |
| 10 module cabinet | 600X2070X850 | ||
| power module | 440X132X660(10KVA/20KVA/30KVA) | ||
